Name: Arrow Symbols

Display Field: FType

Type: Feature Layer

Geometry Type: esriGeometryPoint

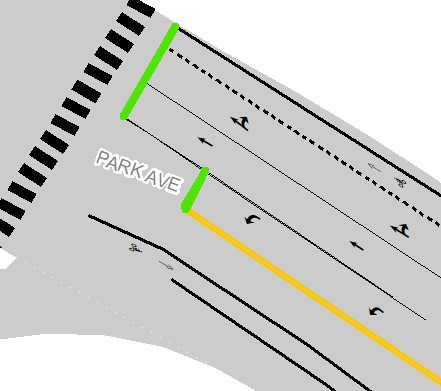

Description: The Pavement_Marking_ArrowSymbols feature class created to manage pavement marking data for the City of Portland. This feature class contains longline street paint data for the City of Portland. Arrow symbols are pavement markings best symbolized with a point, painted by a stencil on the street. It was created to assist with paint marking updates and to improve estmation of needed paint quantities. It was created from data originally contained in a pavement marking database designed by 3m, and updated from 2015, 2017 and 2018 imagery, as well as traffic marking plans, both CAD files and georeferenced image files. The original data was created in approximately 2014, and updated in 2016 and 2019. Updates are planned to take place annually.

Service Item Id: b6e27fc81acf4db88200b2607bf4fa22

Copyright Text: Thea Youngs, Charles Wordell, Kevin Deneault, 3M

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 1000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 2907410.1700997464
YMin: 295085.2244852409
XMax: 2933061.620437164
YMax: 324335.5570605695
Spatial Reference: 26856  (26856)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: FType
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSMSCircle
Color: [255, 255, 255, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Default Label: <all other values>
UniqueValueInfos:
• Value: Arrow All
  Label: Arrow All
  Description: N/A
  Symbol:

• Value: Arrow BikeLn
  Label: Arrow BikeLn
  Description: N/A
  Symbol:

• Value: Arrow L
  Label: Arrow L
  Description: N/A
  Symbol:

• Value: Arrow LS
  Label: Arrow LS
  Description: N/A
  Symbol:

• Value: Arrow Other
  Label: Arrow Other
  Description: N/A
  Symbol:

• Value: Arrow R
  Label: Arrow R
  Description: N/A
  Symbol:

• Value: Arrow RS
  Label: Arrow RS
  Description: N/A
  Symbol:

• Value: Arrow S
  Label: Arrow S
  Description: N/A
  Symbol:

• Value: ArrowBikeLnL
  Label: ArrowBikeLnL
  Description: N/A
  Symbol:

• Value: ArrowBikeLnR
  Label: ArrowBikeLnR
  Description: N/A
  Symbol:

• Value: ArrowBikeLnS
  Label: Bike Lane Arrow straight
  Description: N/A
  Symbol:

• Value: ArrowLR
  Label: Arrow Left Right
  Description: N/A
  Symbol:

• Value: ArrowWrongWay
  Label: ArrowWrongWay
  Description: N/A
  Symbol:

• Value: LaneReductionL
  Label: LaneReductionR
  Description: N/A
  Symbol:

• Value: Legend Ahead
  Label: Legend Ahead
  Description: N/A
  Symbol:

• Value: Legend BLVD
  Label: Legend BLVD
  Description: N/A
  Symbol:

• Value: Legend BUS
  Label: Legend BUS
  Description: N/A
  Symbol:

• Value: Legend Clear
  Label: Legend Clear
  Description: N/A
  Symbol:

• Value: Legend Keep
  Label: Legend Keep
  Description: N/A
  Symbol:

• Value: Legend Lane
  Label: Legend Lane
  Description: N/A
  Symbol:

• Value: Legend Only
  Label: Legend Only
  Description: N/A
  Symbol:

• Value: Legend Other
  Label: Legend Other
  Description: N/A
  Symbol:

• Value: Legend Ped
  Label: Legend Ped
  Description: N/A
  Symbol:

• Value: Legend RR
  Label: Legend RR
  Description: N/A
  Symbol:

• Value: Legend School
  Label: Legend School
  Description: N/A
  Symbol:

• Value: Legend Signal
  Label: Legend Signal
  Description: N/A
  Symbol:

• Value: Legend Slow
  Label: Legend Slow
  Description: N/A
  Symbol:

• Value: Legend SpdLim
  Label: Legend SpdLim
  Description: N/A
  Symbol:

• Value: Legend Stop
  Label: Legend Stop
  Description: N/A
  Symbol:

• Value: Legend X
  Label: Legend X
  Description: N/A
  Symbol:

• Value: Legend Xing
  Label: Legend Xing
  Description: N/A
  Symbol:

• Value: Legend Yield
  Label: Legend Yield
  Description: N/A
  Symbol:

• Value: Legend25MPH
  Label: Legend25MPH
  Description: N/A
  Symbol:

• Value: LegendBump
  Label: LegendBump
  Description: N/A
  Symbol:

• Value: LegendHump
  Label: LegendHump
  Description: N/A
  Symbol:

• Value: LegendLTurnOnly
  Label: LegendLTurnOnly
  Description: N/A
  Symbol:

• Value: LegendRTurnOnly
  Label: LegendRTurnOnly
  Description: N/A
  Symbol:

• Value: LegendRXR
  Label: LegendRXR
  Description: N/A
  Symbol:

• Value: Symbol Bike
  Label: Symbol Bike
  Description: N/A
  Symbol:

• Value: SymbolBikeShar
  Label: SymbolBikeShar
  Description: N/A
  Symbol:

• Value: SymbolSpdTable
  Label: Raised Speed Table
  Description: N/A
  Symbol:

• Value: SymboBikeSharr
  Label: SymboBikeSharr
  Description: N/A
  Symbol:

Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• FType ( type: esriFieldTypeString, alias: FType, length: 15 , Coded Values: [Arrow All: Arrow All] , [Arrow BikeLn: Arrow BikeLn] , [Arrow L: Arrow L] , ...39 more... )
• Material ( type: esriFieldTypeString, alias: Material, length: 15 , Coded Values: [Tape: Tape] , [Tape-Grooved: Tape-Grooved] , [Paint: Paint] , ...4 more... )
• Color ( type: esriFieldTypeString, alias: Color, length: 15 , Coded Values: [White: White] , [Yellow: Yellow] , [Red: Red] , ...3 more... )
• RouteID ( type: esriFieldTypeString, alias: Route, length: 50 )
• Comment ( type: esriFieldTypeString, alias: Comment, length: 255 )
• ModifiedBy ( type: esriFieldTypeString, alias: ModifiedBy, length: 50 )
• LastModifyDate ( type: esriFieldTypeDate, alias: LastModifyDate, length: 8 )
• RotationAngle ( type: esriFieldTypeInteger, alias: RotationAngle )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
